Please note:
I no longer sell directly any of
my previously offered software or hardware products. I have retired.
Construction plans for LINKWITZ LAB designs, parts
kits and turnkey loudspeaker systems are available from www.magicLX521.com
Construction plans for LINKWITZ LAB designs and
parts kits are available from
www.madisound.com
The Construction plans are required license to
purchase parts kits and assembled systems.
| Terms
& Conditions |
The OPLUG
Forum is the place for advice and help
Have fun! |
|
|
The LXmini was
designed to render sound recordings with clarity, neutrality and with
detailed, 3D-like imaging, when properly set up. The speakers will
reveal what is in a recording, but never add unpleasantness. You will
get lost in the music and have a big smile on your face, guaranteed!
The LXmini is a 2-way loudspeaker, which can
be built DIY from a Kit for around $800, including miniDSP 2x4HD equalizer/crossover.
Additionally, 4 power
amplifiers in the 50 W to 200 W range are needed. The speaker's frequency range extends from 45 Hz to 20 kHz.
The horizontal and vertical off-axis frequency response, which is heard via the
room, is spectrally neutral. Thus, listening off-axis merely changes the viewing
angle to the phantom acoustic scene rendered by the seemingly absent
loudspeakers.
Physics limits the maximum sound level
output from a 5 inch woofer below 150 Hz. A gradual, 12 dB/octave low end
roll-off provides satisfactory bass extension below 50 Hz. For LXmini+2 I added
separate subwoofers for bass extension to 25 Hz. If you plan to upgrade in the
future from LXmini to LXmini+2, then use the miniDSP 4x10HD for LXmini.
---- SL - 8/16
|
LXmini
Loudspeaker System
Loudspeakers / DSP /
Pre-amplifier / 4 Power-amplifiers
The System contains:
Assembled & tested LXmini
Loudspeakers
Dull black lacquered HDF parts and tubes, capless
tube mount, screwless fullrange mount.
Alternatively, with transparent acrylic glass tubes.
Individual lacquering schemes upon request.

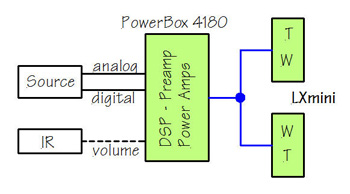

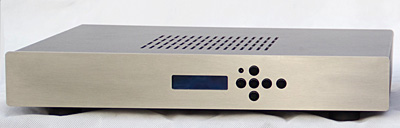

PowerBox 4180
Everything between your CD-player and LXmini in one slim case.
PowerBox 4180 includes high-end Hypex DSP, preamp and 4x UcD180 power
amps.
IR-remote receiver for volume control. Upgrade path to other LX speakers
possible.
Speaker Y-cable
Between PowerBox 4180 and LXmini
One Y-cable, 2x 2,5m,
with three "1-click” SpeakOn connectors, 4x 2,5mm²
conductors
2x PowerBox input cable
Analog input cable/adapter pair, RCA-to-XLR.
Worldwide
shipping: e.g. EU 29€ / US&CAN 85€ / World 109€, plus €15
shipping insurance
EU residents add 19% VAT
Includes License/plan fee to www.linkwitzlab.com
Contact: Dr. Frank Brenner,
info@magicLX521.com
Plans/License is required to purchase kits and
assembled systems. |
Terms
& Conditions |
Send proof of Plans/License ownership to <plans@magicLX521.com>,
if already bought.
|
|
|
The LXmini+2 was
designed to render sound recordings with clarity, neutrality and with
detailed, 3D-like imaging, when properly set up. The speakers will
reveal what is in a recording, but never add unpleasantness. You will
get lost in the music and have a big smile on your face, guaranteed!
The LXmini+2 is a 3-way loudspeaker,
which can
be built DIY from a Kit for around $1800, including a miniDSP 4x10HD equalizer/crossover.
Additionally, 6 power
amplifiers in the 50 W to 200 W range are needed. The speaker's frequency range extends from
25 Hz to 20 kHz. The horizontal and vertical off-axis frequency response, which
is heard via the room, is spectrally neutral. Thus, listening off-axis merely
changes the viewing angle to the phantom acoustic scene rendered by the
seemingly absent loudspeakers.
With an LR2 crossover at a low 60 Hz the two subwoofers can be placed next to or
against the side
walls of a room. Path length
differences to the listener can be compensated for in the DSP unit. Dipole
woofers can also be angled to reduce room mode excitation and thus preserve
articulation in bass sounds.
The LXmini+2 performs sonically like the
LX521.4 and comes close to the full-range dipole's ultimate refinement of sound
presentation, though at 10 dB reduced volume levels in the
bass.
(An upgrade from LXmini to LXmini+2 requires addition of two LXsub2 subwoofers,
a stereo power amplifier (2x 50 W min), and a miniDSP 4x10HD)
---- SL - 8/16
|
LXmini+2
Loudspeaker System
Loudspeakers / DSP /
Pre-amplifier / 4 Power-amplifiers
The System contains:
2x LXmini
Loudspeakers
Dull black lacquered HDF parts and tubes, capless
tube mount, screwless fullrange mount.
Alternatively, with transparent acrylic glass tubes.
Individual lacquering schemes upon request.
2x LXsub2 Woofers
U-frame woofers, round baffle, dull black lacquered finish
1x PowerBox 6pro NCore
Includes high-end Hypex DSP, preamp and 6x NCore power
amps from Hypex.
IR-remote receiver for volume control.
PowerBox 6pro NCore Master for LXmini+2 or LXstudio (€2490)
and with an additional PowerBox 6pro NCore Follower for LX521.4 (+€2490)
See Burning Amp 2016
and Open
House 2017 and PB
6pro PDF
2x Speaker Y-cable
“1-click” SpeakOn, Y-cable between
PowerBox and LXminis, 2x 5m
“1-click” SpeakOn, Y-cable between PowerBox and Woofers, 2x 5m
Worldwide
shipping in 4 parcels: e.g. EU xx€ / US&CAN xx€ / World
xxx€, plus €45 insurance
EU residents add 19% VAT
Includes License/plan fee to www.linkwitzlab.com
Contact: Dr. Frank Brenner,
info@magicLX521.com
Plans/License is required to purchase kits and
assembled systems. |
Terms
& Conditions |
Send proof of Plans/License ownership to <plans@magicLX521.com>,
if already bought.
|
|
|
The LXstudio was
designed to render sound recordings with clarity, neutrality and with
detailed, 3D-like imaging, when properly set up. The speakers will
reveal what is in a recording, but never add unpleasantness.
The LXstudio is 3-way loudspeaker that combines the
LXmini with two LXsub4 dipole subwoofers, which have 10 dB higher output capability
than can be obtained from the LXmini+2 configuration. A 10 dB increase is
perceptually significant due to the ear's very nonlinear hearing
sensitivity to the lowest frequencies. With an LR2 crossover at a low 60 Hz the woofers can be placed against the side
walls of a room and the LXmini used as near-field monitors. Path length
differences to the listener can be compensated for in the DSP unit. Dipole
woofers have the advantage of less room mode excitation, which matters even in a
highly damped recording/mixing studio.
The LXstudio can
be built DIY from a Kit for around $2400, including a miniDSP 4x10HD equalizer/crossover.
Additionally, 6 power
amplifiers in the 50 W to 200 W range are needed. The
frequency range extends from 25 Hz to 20 kHz. The horizontal and vertical
off-axis frequency response, which is heard via the room, is spectrally neutral.
Thus, listening off-axis merely changes the viewing angle to the phantom
acoustic scene rendered by the seemingly absent loudspeakers.
The LXstudio was designed for a mixing
studio application (symphonic music), where the conventional large box monitor
loudspeakers gave uneven response, especially at low frequencies, despite the
studio being highly damped and relatively large.
The LXstudio performs sonically like the
LX521.4, and comes close to the full-range dipole's ultimate refinement of sound
presentation. ---- SL - 8/16
|
LXstudio
Loudspeaker System
Loudspeakers / DSP /
Pre-amplifier / 6 Power-amplifiers
The
System consists of:
2x LXmini Loudspeakers
and 2x LXsub4 Woofers
- Dull black lacquered HDF parts and tubes,
alternatively with transparent acrylic glass tubes.
- Individual lacquering schemes on request.
- V
-frame woofers black MDF dull clear finish.
Hidden cabling in side panels.
1x PowerBox 6pro NCore
-
Includes high-end Hypex DSP, preamp and 6x NCore power
amps from Hypex.
IR-remote receiver for volume control.
-
PowerBox 6pro NCore Master for LXmini+2 or LXstudio (€2490)
and with an additional PowerBox 6pro NCore Follower for LX521.4 (+€2490)
See Burning Amp 2016
and Open
House 2017 and PB
6pro PDF
2x Speaker Y-cable
“1-click” SpeakOn, Y-cable between
PowerBox and LXminis, 2x 5m
“1-click” SpeakOn, Y-cable between PowerBox and Woofers, 2x 5m
Worldwide shipping
in
four parcels: e.g. EU 96€ / US&CAN 319€ / world
399€ / Insurance 45€
Due to weight restrictions per parcel, upper woofer drivers ship in a
separate parcel and must be inserted by customer with 8
bolts
&
nuts.
Inquire about alternative shipping as one 120kg airfreight pallet of
fully assembled (all woofer drivers inserted) and tested loudspeakers:
ca €800 to €1000 from Germany to the US.
Includes License/plan fee to
www.linkwitzlab.com
Does not include: electronic crossover/amp/amp-cables.
EU residents add 19% VAT
Contact: Dr. Frank Brenner, info@magicLX521.com
Plans/License is required to purchase kits and
assembled systems. | Terms
& Conditions |
Send proof of Plans/License ownership to <plans@magicLX521.com>,
if already bought. |
|
|

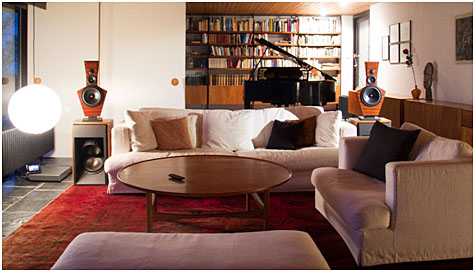

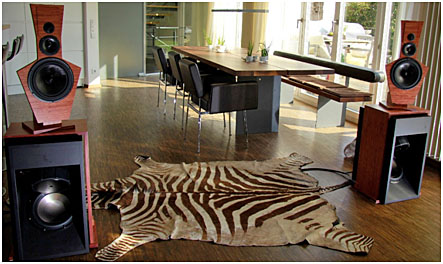

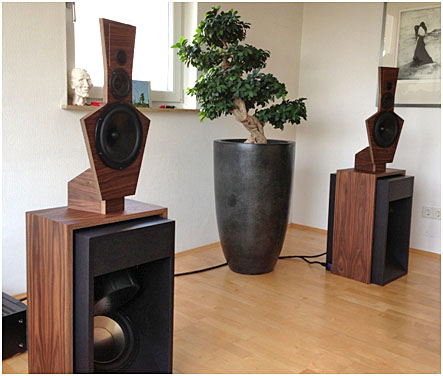

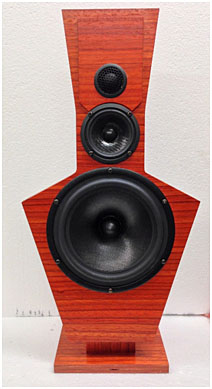

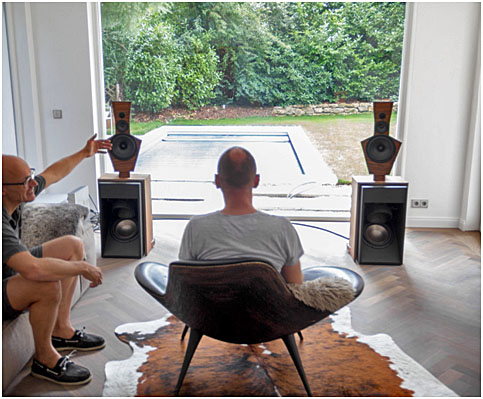

The LX521.4
exemplifies the best of what I have observed and learned in 50 years of
experimentation about rendering stereo recordings in domestic living
spaces. I love music. Life's circumstances prevented me from learning to
play an instrument, but I make up for it by enjoying the creations of
great composers and the art of musicians. I have designed speakers first
of all for myself and free of commercial pressures. With the LX521.4 I
have arrived at a level of performance, which makes me search no
further. Instead I gratefully enjoy what I can hear. I excuse the
recording/mixing engineer for his or her imprint and marginal acoustic
scene capture, as long as the music still comes through. As hired
engineers they work within a set of imposed limitations, one of which is
the typical monitor loudspeaker.
The LX521.4 is a 4-way loudspeaker, designed as
full-range dipole, for flat on-axis and off-axis response in the horizontal
plane and frontal hemisphere. The speakers need breathing room of at least 1
m to the nearest large reflecting surfaces and a room with a minimum floor size
of 25 sqm.
The LX521.4 can
be built DIY from a Kit for around $3300, including a miniDSP 4x10HD equalizer/crossover.
Additionally, the speaker requires between 8 to10 power amplifiers of 50
W to 200 W.
SL - 8/16
|
|

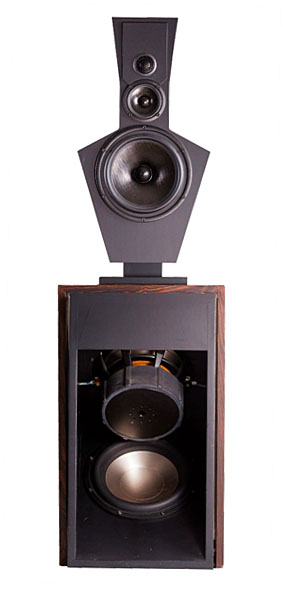

LX521.4
Loudspeaker System
Loudspeakers / DSP /
Pre-amplifier / 8 Power-amplifiers
The System consists of:
2x Loudspeakers

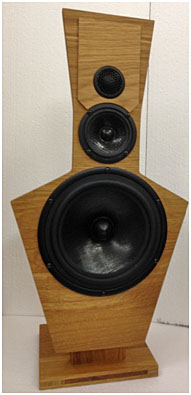

- Top baffles and bridges are custom built in
various precious veneer plywood types.
- Choose your preference! Standard and popular
selections are e.g. Bubinga, American Walnut, Paduk, Mahogany and
Oak. Surfaces are finished by oil, or transparent lacquer (dull /
silk gloss).
- Upgrades to 3-layer massive wood types (e.g.
Oak, Cherry, Walnut or Ash) or to Panzerholz possible.
- Hidden cabling in all aspects.
2x PowerBox 6pro NCore (Master
& Follower)
2x Speaker Y-cable
“1-click” SpeakOn, Y-cable between
PowerBox and left LX521, 5m
“1-click” SpeakOn, Y-cable between PowerBox and right LX521, 5m
Worldwide shipping of LX
system in
four parcels: e.g. EU 96€ / US&CAN 319€ / World
399€ / Insurance 60€
Due to weight restrictions per parcel, upper woofer drivers ship in a
separate parcel and must be inserted by customer with 8
bolts&nuts.
Inquire about alternative shipping as one 120kg airfreight pallet of
fully assembled (all woofer drivers inserted) and tested loudspeakers:
ca €800 to €1000 from Germany to the US.
Worldwide shipping of
Electronics: e.g.
EU 25€ / US&CAN 79€ / world 85€, plus
15€ insurance
Includes License/plan fee to
www.linkwitzlab.com
EU residents add 19% VAT
Mahagony
Bubinga
Walnut
Walnut


3-layer massive oak,
oiled Paduck
Hidden
cabling
Top: black Panzerholz
Bridge: Makassar Ebenholz
45
degree miters at bridge
Contact: Dr. Frank Brenner, info@magicLX521.com
Plans/License is required to purchase kits and
assembled systems. | Terms
& Conditions |
Send proof of Plans/License ownership to <plans@magicLX521.com>,
if already bought.
|
|
LXmini, LXmini w/Subs, Orion4d turnkey systems.
|
|
