LX - Loudspeaker Store

LXmini  --  LXmini+2  --  LXstudio  --  LX521.4





LXmini

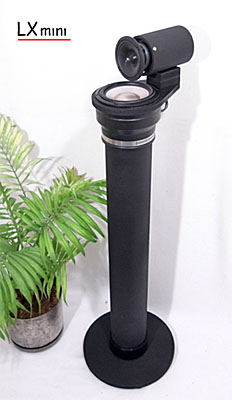

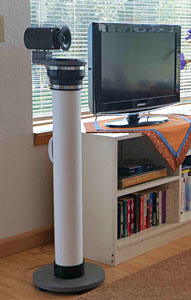

The LXmini was designed to render sound recordings with clarity, neutrality and with detailed, 3D-like imaging, when properly set up. The speakers will reveal what is in a recording, but never add unpleasantness. You will get lost in the music and have a big smile on your face, guaranteed!

The LXmini is a 2-way loudspeaker, which can be built DIY from a Kit for around $800, including miniDSP 2x4HD equalizer/crossover. Additionally, 4 power amplifiers in the 50 W to 200 W range are needed. The speaker's frequency range extends from 45 Hz to 20 kHz. The horizontal and vertical off-axis frequency response, which is heard via the room, is spectrally neutral. Thus, listening off-axis merely changes the viewing angle to the phantom acoustic scene rendered by the seemingly absent loudspeakers.

Physics limits the maximum sound level output from a 5 inch woofer below 150 Hz. A gradual, 12 dB/octave low end roll-off provides satisfactory bass extension below 50 Hz. For LXmini+2 I added separate subwoofers for bass extension to 25 Hz. If you plan to upgrade in the future from LXmini to LXmini+2, then use the miniDSP 4x10HD for LXmini.   ----   SL - 8/16







LXmini Construction Plans/License
and ATI Amplifiers from

www.linkwitzlab.com

LXmini Construction Plans/License .... $105
Plans/License is also required to purchase kits and assembled systems.

AT1804 Power Amplifiers (4x 180W/ch) .... $1450
AT524NC Power Amplifiers (4x 200W/ch) .... $2295
AT6012 Power Amplifiers (12x 60W/ch) .... $1950

Alternatively provide four power amplifiers (4x 50W/ch minimum & identical voltage gain for each channel, <0.03% dist.)
The Emotiva A-800 8-channel amplifier could be a low cost, satisfactory performance solution for LXmini, or LXmini+2, or LXstudio applications.

CA residents add 9% Sales Tax

Take a look at a Digital Stereo Sound System example
Check out your system and hearing with a Phantom Image Test







LXmini DSP Modules from www.miniDSP.com

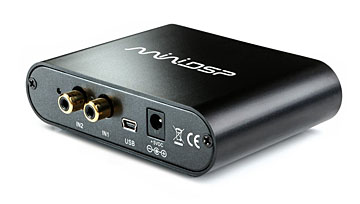

miniDSP 2x4 .... $105
miniDSP 2x4 Advanced plug-in / 48kHz processing .... $10
2-in analog, 4-out analog, 0.9V

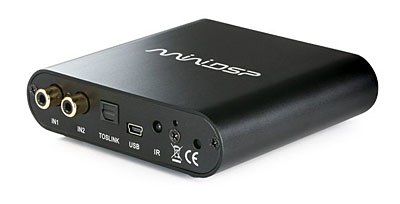

miniDSP 2x4 HD .... $205
miniDSP 2x4 HD1 plug-in / 96kHz processing .... $10
2-in analog, 2-in digital, 4-out analog, 2V, remote volume

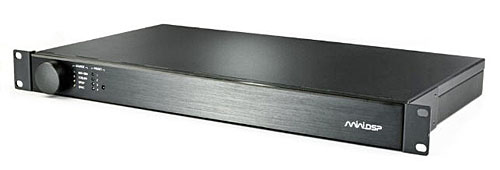

miniDSP 4x10 HD .... $499
miniDSP 4x10 plug-in / 96kHz processing .... $10
2-in analog, 2-in digital, 8-out analog, 2V, local knob and remote volume

miniDSP USBStreamer B .... $105
USB input to Toslink optical output











LXmini Kit from www.madisound.com

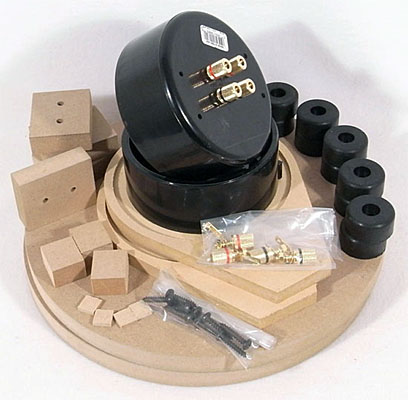

LXmini Kit .... $618

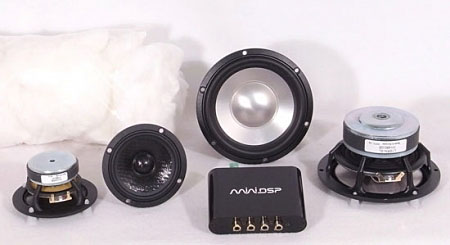

The LXmini Kit includes: 2-Woofers, 2-Fullrange drivers, miniDSP 2x4HD, wood parts and related items, stuffing, but no pipes and rubber couplers.
Alternatively, LXmini Kit with miniDSP 2x4 .... $510







Contact: Adam Johnson

Plans/License is required to purchase kits and assembled systems.  | Terms & Conditions |







LXmini Kit from www.LINKWITZ.store

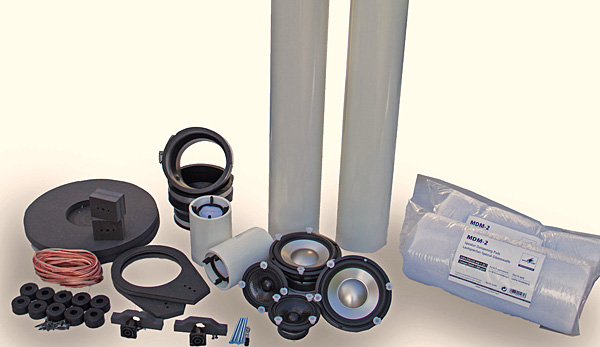

LXmini Loudspeaker Parts ....  raw/white tubes, lacquered tubes, transparent tubes
4 SEAS drivers, screwless driver mounts, top quality mitered HDF parts, hidden cabling,
precision cut import tubes, capless tube mount.
Tubes and HDF parts come predrilled/marked.

Kits with lacquered tubes or with transparent acrylic glass tubes available as upgrade ....
Individual lacquering schemes upon request

Worldwide shipping: ca.  EU 20€ / US&CAN 58€ / World 78€

EU residents add 19% VAT

  • 4 SEAS drivers
  • Precision cut tubes, predrilled
  • CNC'ed HDF parts in dull black (high density wooden material,
    without the downsides of MDF like soaking edges, etc)
  • Screwless fullrange driver mount, no visible screws on upper tube
  • Capless lower tube mount
  • Screwless upper tube support
  • 2 Speakon 4-way plugs “1-click”
  • Internal cables
  • Rubber couplers
  • Damping material



screwless fullrange
mounting device

capless tube
mounting

elegant SpeakOn
terminal on rear side

hidden cables

Kit does not contain: electronic crossover/amp/amp-cables, paint, glue, plans/license from www.linkwitzlab.com..

Contact: Dr. Frank Brenner, info@LINKWITZ.store

Plans/License is required to purchase kits and assembled systems.  | Terms & Conditions |
Send proof of Plans/License ownership to <plans@LINKWITZ.store>







LXmini Electronics from www.LINKWITZ.store



DSP / Pre-amplifier / Power-amplifiers

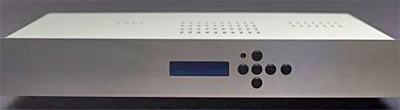

PowerBox 4180 .... €1890
Everything between your CD-player and LXmini in one slim case.

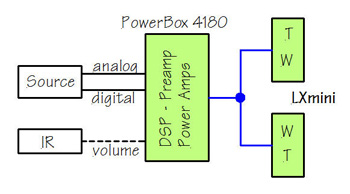

PowerBox 4180 includes high-end 6-ch Hypex DSP, preamp and 4x UcD180 power amps
IR remote receiver for volume control

Two woofer signal outputs (ch 5 & 6) allow external amplification for LX dipole woofers of LXmini+2 or LXstudio



or



NEW

ASP-based, fully integrated  PowerBox 6pro precision analog



ASP and 6x NCore amplifier channels, rumble filter. For LXmini, LXmini+2, LXstudio



Speaker Y-cable .... €89
Between PowerBox 4180 and LXmini
One Y-cable,
2x 2,5m, with three "1-click” SpeakOn connectors, 4x 2,5mm˛ conductors

-------------------------------------------------------

Worldwide shipping: e.g. EU 25€ / US&CAN 79€ / World 85€, plus €15 shipping insurance

EU residents add 19% VAT
Includes License/plan fee to www.linkwitzlab.com

          Contact: Dr. Frank Brenner, info@LINKWITZ.store

Plans/License is required to purchase kits and assembled systems.  | Terms & Conditions |
Send proof of Plans/License ownership to <plans@LINKWITZ.store>, if already bought.







LXmini Turnkey System from www.LINKWITZ.store

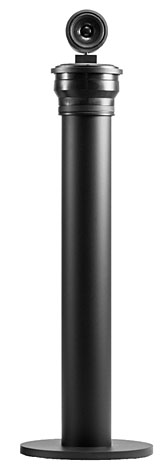

LXmini Loudspeaker System

Loudspeakers / DSP / Pre-amplifier / 4 Power-amplifiers









or

NEW

ASP-based, fully integrated  PowerBox 6pro precision analog

ASP and 6x NCore amplifier channels, rumble filter. For LXmini, LXmini+2, LXstudio



The System contains:

Assembled & tested LXmini Loudspeakers
Dull black lacquered HDF parts and tubes, capless tube mount, screwless fullrange mount.
Alternatively, with transparent acrylic glass tubes. Individual lacquering schemes upon request.

PowerBox 4180
Everything between your CD-player and LXmini in one slim case.
PowerBox 4180 includes high-end Hypex DSP, preamp and 4x UcD180 power amps.
IR-remote receiver for volume control. Upgrade path to other LX speakers possible.

Speaker Y-cable
Between PowerBox 4180 and LXmini
One Y-cable,
2x 2,5m, with three "1-click” SpeakOn connectors, 4x 2,5mm˛ conductors

2x PowerBox input cable
Analog input cable/adapter pair, RCA-to-XLR.

Worldwide shipping: e.g. EU 29€ / US&CAN 85€ / World 109€, plus €15 shipping insurance

EU residents add 19% VAT
Includes License/plan fee to www.linkwitzlab.com

Contact: Dr. Frank Brenner, info@LINKWITZ.store

Plans/License is required to purchase kits and assembled systems.  | Terms & Conditions |
Send proof of Plans/License ownership to <plans@LINKWITZ.store>, if already bought.

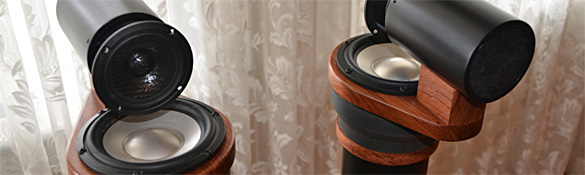

https://LXspeakerfactory.com/

LXmini, LXmini w/Subs, Orion4d turnkey systems.
